Bellows Pump Technologies
Pump Technologies.png

  • Teflon® PTFE, PFA 접액부

  • No metals, No O-rings

  • 최소한의 부품으로 내구성 있는 가공 설계

  • Leak-free seals과 O-rings 없이 안전한 작동

  • 온보드, Non-stall 셔틀을 통한 Foot print 절약

  • 강력한 벨로우즈를 통한 7 bar(100 psi)의 공급압력

  • 윤활유가 필요 없는 무급유 Bellows Shifting으로 잠재적인 Contamination 제거

  • 열을 발생시키는 전기 모터가 없음

  • Class 100 cleanroom 조립, 테스트, 패키징 공정

  • 예방적 유지보수 불필요

Bellows Pump Key Points
No Oring.png

  • No Metal

  • No O-ring

  • Compact Size

  • Dead Head 가능

  • 고온 Application 대응 - 최대 210 ℃

  • 고압력 대응 - 최대 100 psi

  • 최대 유량 - Max 140 lpm

  • 구동 방식 - Shuttle, Fiber Optic, Proximity

  • 전 파트 Rebuild 가능 - New Warranty 적용

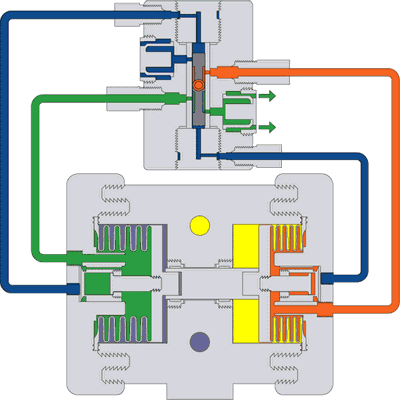

Bellows Pump - Shuttle

Operate with shuttle

PSA Series.png

PSA Series

Single Air Source

Sizes

         PSA030 (30LPM)

         PSA060 (60LPM)

         PSA140 (140LPM)



*Temp:  Up to 100 C

*Air Pressure : 100 PSI

PSH Series.png

PSH Series

Single Air Source

Sizes:

         PSH030 (30LPM)

         PSH060 (60LPM)

         PSH140 (140LPM)



*Temp:  Up to 145 C

*Air Pressure:  80 PSI

PSU Series.png

PSU Series

Single Air Source

Sizes:

         PSU030 (30LPM)

         PSU060 (60LPM)

         PSU140 (140LPM)

* Syncro Threads

*Temp:  Up to 210 C

*Air Pressure:  100 PSI

PSR Series.png

PSR Series

Single Air Source

Sizes

          PSR025 (25LPM)

          PSR050 (50LPM)





*Temp:  Up to 100 C

*Air Pressure:  60 PSI

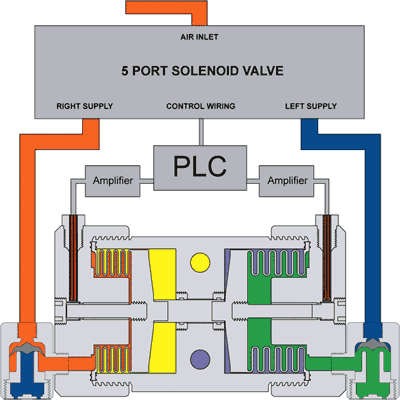

Bellows Pump - Fiber Optic

Operate with solenoid valve and fiber optics

PFA Series.png

PFA Series

Single Air Source

Sizes

         PFA030 (30LPM)

         PFA060 (60LPM)

         PFA140 (140LPM)



*Temp:  Up to 100 C

*Air Pressure : 100 PSI

PFH Series.png

PFH Series

Single Air Source

Sizes:

         PFH030 (30LPM)

         PFH060 (60LPM)

         PFH140 (140LPM)



*Temp:  Up to 145 C

*Air Pressure:  80 PSI

PFU Series.png

PFU Series

Single Air Source

Sizes:

         PFU030 (30LPM)

         PFU060 (60LPM)

         PFU140 (140LPM)

* Syncro Threads

*Temp:  Up to 210 C

*Air Pressure:  100 PSI

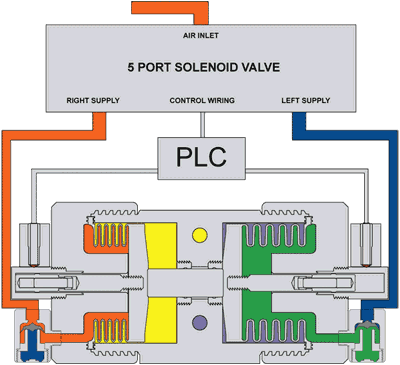

Bellows Pump - Proximity Sensor

Operate with solenoid valve and proximity switches

PXA Series.png

PXA Series

Single Air Source

Sizes

         PXA030 (30LPM)

         PXA060 (60LPM)

         PXA140 (140LPM)



*Temp:  Up to 100 C

*Air Pressure : 100 PSI

PXH Series.png

PXH Series

Single Air Source

Sizes:

         PXH030 (30LPM)

         PXH060 (60LPM)

         PXH140 (140LPM)



*Temp:  Up to 145 C

*Air Pressure:  80 PSI

PXU Series.png

PXU Series

Single Air Source

Sizes:

         PXU030 (30LPM)

         PXU060 (60LPM)

         PXU140 (140LPM)

*Syncro Threads

*Temp:  Up to 210 C

*Air Pressure:  100 PSI
